Let clients manage their data with Connections SDK

Put your customers in control of their data connections with our pre-built embeddable component

Overview

Give your customers the ability to manage the access permissions they have given you by using our ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. SDK in your front end. This is key from a regulatory perspective, builds trust between you and your customer, and is required by some accounting software (e.g. Xero).

Functionality

With its sleek UI and low-code deployment, the component provides the following critical functionality:

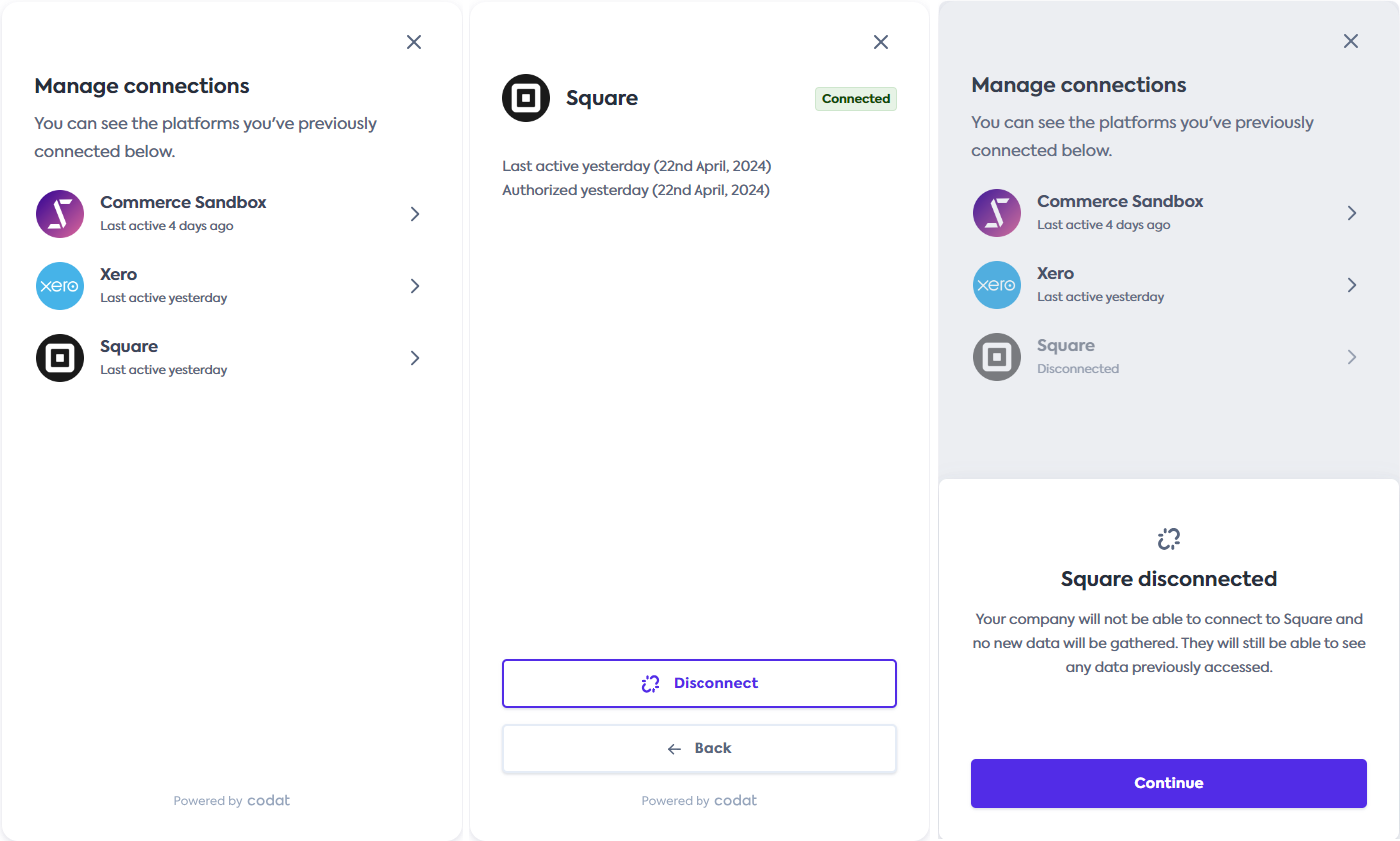

• Displays accounting, banking, and commerce connectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. in Linked, Unlinked, and Deauthorized statuses.
• Provides the details of first authorization date and most recent syncSync The process of fetching the latest data from a connected data source. Syncs can be triggered manually or run automatically on a schedule. date.
• Allows the user to disconnect an active connectionConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform., setting it to a Unlinked state and retaining previously fetched data.
• Enables the user to reauthorize a previously unlinked or deauthorized connectionConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform., setting it back to Linked status.
• Provides additional controls over specific integrations (e.g. Pause the connector for QuickBooks Desktop).

You can read more about Connection statuses at Codat.

Example implementation

We've provided rich examples on GitHub that illustrate how you can add the ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. component to your project.

Prerequisites

Your application

You need a JavaScript application to render the component. The component can be used in any part of your application and works with all major JavaScript frameworks, such as React and Typescript. You can also implement it in vanilla JavaScript. We don't recommend using it in an iframe because it will not work for security reasons (CORS).

Link SDK and Connections SDK

The ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. SDK is an independent component and doesn't require our Link SDK to work. You can use the LinkLink The authorization flow that allows end users to connect their accounting, banking, or commerce platforms to your application via Codat. SDK in your app to enhance your customers' auth flow experience and achieve an 89% average conversion rate.

Access token

Once your customer authorizes within your application, use the Get company access token endpoint to retrieve an access token for this customer's companyCompany In Codat, a company represents your customer's business entity. Companies can have multiple connections to different data sources..

Token validity

The token is only valid for one day and applies to a single companyCompany In Codat, a company represents your customer's business entity. Companies can have multiple connections to different data sources..

TypeScript

const accessTokenRes = await platformClient.connectionManagement.getAccessToken(
  {
    companyId: companyId,
  },
);

if (accessTokenRes.statusCode == 200) {
  const accessToken =
    accessTokenRes.connectionManagementAccessToken.accessToken;
  console.log(accessToken);
}

Python

access_token_req = operations.GetConnectionManagementAccessTokenRequest(
    company_id=company_id,
)

access_token_res = platform_client.connection_management.get_access_token(access_token_req)

if access_token_res.connection_management_access_token is not None:
    print(access_token_res.connection_management_access_token.access_token)

C#

var accessTokenRes = await platformClient.ConnectionManagement.GetAccessTokenAsync(new() {
    CompanyId = companyId,
};);

if(accessTokenRes.StatusCode != 200){
  throw new Exception("Could not create company");
}

var accessToken = accessTokenRes.ConnectionManagementAccessToken.AccessToken;
Console.WriteLine(accessToken);

Go

ctx := context.Background()
accessTokenReq, err := platformClient.ConnectionManagement.GetAccessToken(ctx,
  operations.GetConnectionManagementAccessTokenRequest{
    CompanyID: companyID,
	}
)

if accessTokenReq.StatusCode == 200 {
  accessToken := accessTokenReq.ConnectionManagementAccessToken.AccessToken
  fmt.Println("%s", accessToken)
}

Java

GetConnectionManagementAccessTokenRequest accessTokenReq = GetConnectionManagementAccessTokenRequest.builder()
  .companyId(companyId)
  .build();

GetConnectionManagementAccessTokenResponse accessTokenRes = platformClient.connectionManagement().getAccessToken()
  .request(accessTokenReq)
  .call();

if (accessTokenRes.connectionManagementAccessToken().isPresent()) {
  accessToken = companyResponse.connectionManagementAccessToken().get().accessToken;
  System.out.println(accessToken);
}

Pass the token to the ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. component so that we can get the companyCompany In Codat, a company represents your customer's business entity. Companies can have multiple connections to different data sources.-specific information and display it in the UI. We summarized this process on the diagram:

CORS settings

Cross-origin resource sharing (CORS) settings are required for the ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. component to work. To control the domain list that your application can make token requests from, register the allowed origins using the Set CORS settings endpoint.

To display the origins you previously registered for your instance, use the Get CORS settings endpoint.

Get started

Install the npm package

Take advantage of our npm package so you don't have to manually import and maintain type definitions. You will benefit from it the most if you are using Typescript.

$ npm i -S @codat/sdk-connections

React

Get started with React

For an example of the component in action, see our demo app.

1. Create a component that mounts the SDK

You can copy and paste the example CodatConnections.tsx file to an appropriate location in your app. We recommend setting the component to width: 460px; height: 840px because it's optimized to look best with these parameters. The code snippet below uses these parameters.

2. Use the component to mount the SDK

   We suggest wrapping the CodatConnections component in a modal so that you can adjust its positioning. It can also manage when to display the connections, passing the relevant access token and callbacks.

// ConnectionManagement.tsx

import {
  DisconnectCallbackArgs,
  ErrorCallbackArgs,
} from "@codat/sdk-connections";

import { CodatConnections } from "./components/CodatConnections";
import { useState } from "react";

export const ConnectionManagement = ({
  accessToken,
}: {
  accessToken: string;
}) => {
  const [modalOpen, setModalOpen] = useState(false);

  const onDisconnect = (connection: DisconnectCallbackArgs) =>
    alert(`On disconnect callback - ${connection.connectionId}`);
  const onReconnect = (connection: DisconnectCallbackArgs) =>
    alert(`On reconnect callback - ${connection.connectionId}`);
  const onClose = () => setModalOpen(false);
  const onError = (error: ErrorCallbackArgs) =>
    alert(`On error callback - ${error.message}`);

  return (
    <div>
      <p>Some content</p>
      <button onClick={() => setModalOpen(true)}>Manage connections</button>
      {modalOpen && (
        <div className="modal-wrapper">
          <CodatConnections
            accessToken={accessToken}
            onDisconnect={onDisconnect}
            onReconnect={onReconnect}
            onError={onError}
            onClose={onClose}
          />
        </div>
      )}
      ;
    </div>
  );
};

3. If you're using content security policy (CSP) headers:

   • Allowlist Codat by adding *.codat.io to default-src (or each of script-src, style-src, font-src, connect-src, img-src).
   • Add unsafe-inline to style-src. Don't use a hash because this can change at any time without warning.

4. If you are using TypeScript, extend your type declarations with our types by installing the package using npm install --save-dev @codat/sdk-connections. Otherwise, delete the type-related code in the snippets.

NextJS

Get started with NextJS

For an example of the component in action, see our demo app.

NextJS and urlImports

NextJS is opinionated about the import strategy we're suggesting, and has an experimental feature called urlImports. If you follow our NextJS example, you'll be warned you need to use the urlImports feature.

ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. SDK and urlImports are not compatible, because NextJS assumes the resources are static and caches the SDK, causing various issues.

In the snippet below, you'll see that we use webpack's magic comments feature to avoid NextJS's caching and use normal import() behavior.

1. Create a component that mounts the SDK

You can copy and paste the example CodatConnections.tsx file to an appropriate location in your app. We recommend setting the component to width: 460px; height: 840px because it's optimized to look best with these parameters.

We use "use client" in the script to define this as client-side code, and the import is ignored in webpack to avoid NextJS caching (as above).

2. Use the component to mount the SDK

We suggest wrapping the CodatConnections component in a modal so that you can adjust its positioning. It can also manage when to display the connections, passing the relevant access token and callbacks.

// page.tsx

"use client";

import {
  DisconnectCallbackArgs,
  ErrorCallbackArgs,
  ReconnectCallbackArgs,
} from "@codat/sdk-connections";

import { CodatConnections } from "./components/CodatConnections";
import Image from "next/image";
import styles from "./page.module.css";
import { useState } from "react";

export default function Home() {
  const [accessToken, setAccessToken] = useState(""); //provide accessToken
  const [modalOpen, setModalOpen] = useState(false);

  const onDisconnect = (connection: DisconnectCallbackArgs) =>
    alert(`On disconnect callback - ${connection.connectionId}`);
  const onReconnect = (connection: ReconnectCallbackArgs) =>
    alert(`On reconnect callback - ${connection.connectionId}`);
  const onClose = () => setModalOpen(false);
  const onError = (error: ErrorCallbackArgs) =>
    alert(`On error callback - ${error.message}`);

  return (
    <main className={styles.main}>
      {/* // ... some other components */}
      {modalOpen && (
        <div className={styles.modalWrapper}>
          <CodatConnections
            accessToken={accessToken}
            onDisconnect={onDisconnect}
            onReconnect={onReconnect}
            onError={onError}
            onClose={onClose}
          />
        </div>
      )}
    </main>
  );
}

3. If you're using content security policy (CSP) headers:

   • Allowlist Codat by adding *.codat.io to default-src (or each of script-src, style-src, font-src, connect-src, img-src).
   • Add unsafe-inline to style-src. Do not use a hash because this can change at any time without warning.

4. If you are using TypeScript, extend your type declarations with our types by installing the package using npm install --save-dev @codat/sdk-connections. Otherwise, delete the type-related code in the snippets.

JavaScript

Get started with JavaScript

For an example of the component in action, see our demo app.

1. Create a target div for the CodatConnections component

It should have an id of codat-connections-container.

The CodatConnections component will be mounted within this div. We recommend setting width: 460px; height: 840px for this element and styling it as a modal by nesting it within a modal wrapper (e.g. position: fixed; inset: 0). The component is optimized to look best with these parameters.

The created CodatConnections component expands to fit 100% of the specified dimensions.

2. Import the ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. SDK component

If you're using the component inside a script tag, the tag must have type="module" set.

import { CodatConnections } from "https://connections-sdk.codat.io";

3. Define callbacks

const closeCallback = () => {
  connectionsSdkTarget.style.pointerEvents = "none";
  connectionsSdkTarget.removeChild(connectionsSdkTarget.children[0]);
};

const onClose = () => closeCallback();
const onReconnect = (connection) =>
  alert(`On reconnect callback  = ${connection.connectionId}`);
const onDisconnect = (connection) =>
  alert(`On disconnect callback  = ${connection.connectionId}`);
const onError = (error) => alert(`On error callback : ${error.message}`);

5. Initialize the LinkLink The authorization flow that allows end users to connect their accounting, banking, or commerce platforms to your application via Codat. SDK component in your app

Supply the accessToken for the companyCompany In Codat, a company represents your customer's business entity. Companies can have multiple connections to different data sources. you want to manage connectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. for:

const connectionsSdkTarget = document.querySelector(
  "#codat-connections-container",
);

const openModal = () => {
  connectionsSdkTarget.style.pointerEvents = "initial";
  new CodatConnections({
    target: connectionsSdkTarget,
    props: {
      accessToken,
      onReconnect,
      onClose,
      onDisconnect,
      onError,
    },
  });
};

4. If you're using content security policy (CSP) headers:

   • Allowlist Codat by adding *.codat.io to default-src (or each of script-src, style-src, font-src, connect-src, img-src).
   • Add unsafe-inline to style-src. Do not use a hash because this can change at any time without warning.

5. If you are using TypeScript, extend your type declarations with our types by installing the package using npm install --save-dev @codat/sdk-connections. Otherwise, delete the type-related code in the snippets.

Angular

Get started with Angular

For an example of the component in action, see our demo app.

Angular and urlImports

In the snippet below, we use webpack's magic comments feature to avoid Angular's caching and use normal import() behavior.

1. Create a component that mounts the SDK

See the codat-connections folder for an example module.

2. Define access token and callbacks

//app.component.ts

accessToken = ''; // provide access token
connectionsSdkOpen = false;

openConnectionsSdk() {
  if (this.accessToken) {
    this.connectionsSdkOpen = true;
  }
}

closeConnectionsSdk() {
  this.connectionsSdkOpen = false;
}

onDisconnect(connection) {
  alert(`On disconnect callback : ${connection.connectionId}`);
}

onReconnect(connection) {
  alert(`On reconnect callback : ${connection.connectionId}`);
}

onError(error) {
  alert(`On error callback : ${error.message}`);
}

3. Use the component to mount the SDK

<!-- app.component.html -->

<button (click)="openConnectionsSdk()">Manage connections</button>
<app-codat-connections
  [accessToken]="accessToken"
  (connection)="onDisconnect($event)"
  (connection)="onReconnect($event)"
  (close)="closeConnectionsSdk()"
  (error)="onError($event)"
  *ngIf="connectionsSdkOpen"
></app-codat-connections>

4. If you're using content security policy (CSP) headers:

   • Allowlist Codat by adding *.codat.io to default-src (or each of script-src, style-src, font-src, connect-src, img-src).
   • Add unsafe-inline to style-src. Do not use a hash because this can change at any time without warning.

5. If you are using TypeScript, extend your type declarations with our types by installing the package using npm install --save-dev @codat/sdk-connections. Otherwise, delete the type-related code in the snippets.

Vue

Get started with Vue

For an example of the component in action, see our demo app.

1. Create a component that mounts the SDK

You can copy and paste the example CodatConnections.vue file to an appropriate location in your app. We recommend setting width: 460px; height: 840px for this component because it's optimized to look best with these parameters.

2. Use this component to mount the SDK

We suggest wrapping the CodatConnections component in a modal so that you can adjust its positioning. It can also manage when to display the connections, passing the relevant access token and callbacks.

// App.vue

<script setup lang="ts">
  import CodatConnections from './components/CodatConnections.vue'
  import { ref } from 'vue'
  import type { DisconnectCallbackArgs, ReconnectCallbackArgs, ErrorCallbackArgs } from 'https://connections-sdk.codat.io'

  const accessToken = ref('') //provide access token
  const modalOpen = ref(false)

  const onDisconnect = (connection: DisconnectCallbackArgs) =>
    alert(`On disconnect callback - ${connection.connectionId}`);
  const onReconnect = (connection: ReconnectCallbackArgs) =>
    alert(`On reconnect callback - ${connection.connectionId}`);
  const onClose = () => (modalOpen = false);
  const onError = (error: ErrorCallbackArgs) =>
    alert(`On error callback - ${error.message}`);
</script>

<div class="app">
  <main>
      {#if modalOpen}
      <div class="modal-wrapper">
        <CodatConnections {accessToken} {onDisconnect} {onReconnect} {onClose} {onError} />
      </div>
    {/if}
  </main>
</div>

4. If you're using content security policy (CSP) headers:

   • Allowlist Codat by adding *.codat.io to default-src (or each of script-src, style-src, font-src, connect-src, img-src).
   • Add unsafe-inline to style-src. Do not use a hash because this can change at any time without warning.

5. If you are using TypeScript, extend your type declarations with our types by installing the package using npm install --save-dev @codat/sdk-connections. Otherwise, delete the type-related code in the snippets.

Svelte

Get started with Svelte

For an example of the component in action, see our demo app.

1. Create a component that mounts the SDK

You can copy and paste the example CodatConnections.svelte file to an appropriate location in your app. We recommend setting width: 460px; height: 840px for this component because it's optimized to look best with these parameters.

2. Use the component to mount the SDK

We suggest wrapping the CodatConnections component in a modal so that you can adjust its positioning. It can also manage when to display the connections, passing the relevant access token and callbacks.

// App.svelte

<script lang="ts">
  import CodatConnections from "./lib/CodatConnections.svelte";
  import type {
    DisconnectCallbackArgs,
    ReconnectCallbackArgs,
    ErrorCallbackArgs,
  } from "https://connections-sdk.codat.io";

  let modalOpen = false;
  let accessToken = ""; //provide access token

  const onDisconnect = (connection: DisconnectCallbackArgs) =>
    alert(`On disconnect callback - ${connection.connectionId}`);
  const onReconnect = (connection: ReconnectCallbackArgs) =>
    alert(`On disconnect callback - ${connection.connectionId}`);
  const onClose = () => (modalOpen = false);
  const onError = (error: ErrorCallbackArgs) =>
    alert(`On error callback - ${error.message}`);
</script>

// App.svelte

<div class="app">
  <main>
    {#if modalOpen}
      <div class="modal-wrapper">
        <CodatConnections
          {accessToken}
          {onDisconnect}
          {onReconnect}
          {onClose}
          {onError}
        />
      </div>
    {/if}
  </main>
</div>

4. If you're using content security policy (CSP) headers:

   • Allowlist Codat by adding *.codat.io to default-src (or each of script-src, style-src, font-src, connect-src, img-src).
   • Add unsafe-inline to style-src. Do not use a hash because this can change at any time without warning.

5. If you are using TypeScript, extend your type declarations with our types by installing the package using npm install --save-dev @codat/sdk-connections. Otherwise, delete the type-related code in the snippets.

Interface options

The component doesn't support the branding and customization settings that you can apply to our Link auth journey in the Codat Portal. However, you can use the SDK's options property to change some of these settings.

<CodatConnections
  accessToken={accessToken}
 onClose: () => void = () => {};
 onError: ({correlationId?: string;
  message?: string;
  errorCode?: number;
  userRecoverable: boolean}) => void = () => {};
onReconnect: (args: {connectionId: string}) => void = () => {};
onDisconnect: (args: {connectionId: string}) => void = () => {};
  options={{
      text: {...},
  }}
/>

The options prop is optional and accepts an object containing the following optional properties:

Property	Description
text	Contains options that control what text is displayed to the user.

The object is applied as the SDK component is mounted and doesn't support reloading. Make sure to modify the options before mounting the component.

Custom text

Use the text property to control some of the text displayed within the ConnectionsConnection A link between a Codat company and a data source (like an accounting platform). Each connection represents authorized access to pull or push data from that platform. UI. You can override the following text options:

Option	Type and description
accounting.connectionDetails.dataTypes banking.connectionDetails.dataTypes commerce.connectionDetails.dataTypes	array[string] (accepts Markdown) List of requested data types displayed before disconnecting or reconnecting an accounting, banking or commerce software. If this is not set, the UI will not display a list of data types when disconnecting or reconnecting.

Changelog

Change management

As with all Codat solutions, this SDK is subject to our change management policy. We will give appropriate notice for changes to it and any associated APIsAPI A set of rules and protocols that allows different software applications to communicate with each other. Codat provides APIs for accessing financial data from accounting, banking, and commerce platforms.. We have rigorous testing and security measures in place to ensure you can import our SDK with confidence.

April 2024

• Initial release of the SDK.

---

Read next

• Optimize your auth flow
